Drone 2D/3D Modeling & Mapping

Drone 3D Modeling & Mapping Service

Drone mapping services provided are intended for visual augmentation and should not be used as a substitute for traditional land surveying methods.

  1. Orthomosaic Maps: These are high-resolution aerial images that have been geometrically corrected (orthorectified) to remove the effects of terrain relief and camera orientation. Orthomosaic maps can be used to create 2D maps or 3D models of an area.
  2. Digital Elevation Models (DEMs): These are 3D representations of an area that show the terrain’s elevation. DEMs can be created from aerial imagery or lidar (light detection and ranging) data collected by drones.
  3. 3D Models: Drones can be used to create 3D models of buildings, infrastructure, and other features. These models can be used for a variety of purposes, such as asset management, planning, and visualization.
  4. Videos and Photos: Drones can capture high-resolution videos and photos of an area from a bird’s-eye view. These can be used for documentation, marketing, and other purposes.
  5. Thermal Imagery: Drones equipped with thermal cameras can capture images that show the temperature of an area or object. This can be useful for identifying problems, such as insulation issues or overheated machinery.

Drone Mapping and Modeling is Perfect For:

3D Models

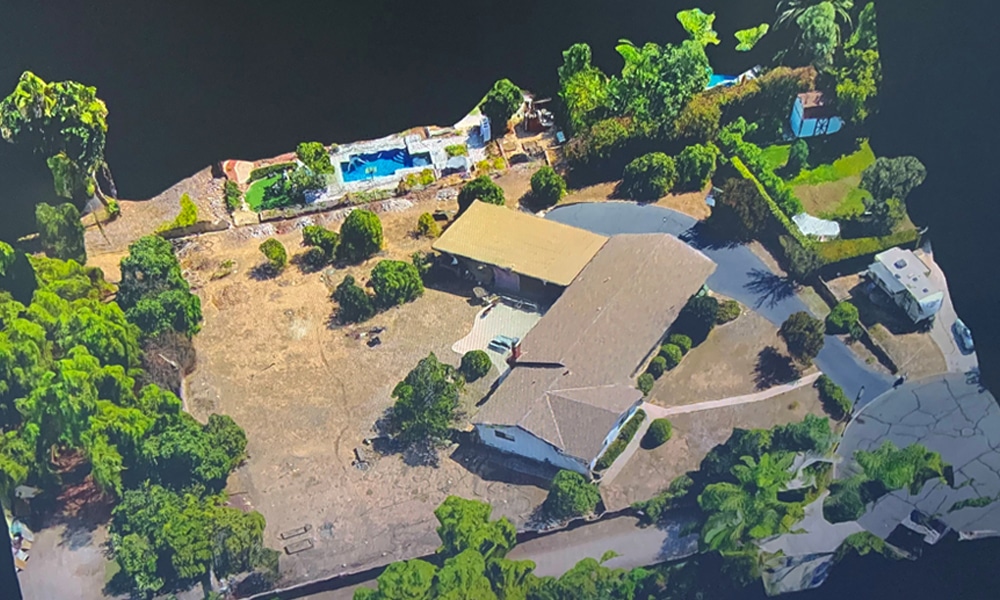

Drones equipped with cameras can be used to create 3D models of an area or object. These models are digital representations of the real-world that can be used for a variety of purposes, such as asset management, planning, visualization, and analysis.

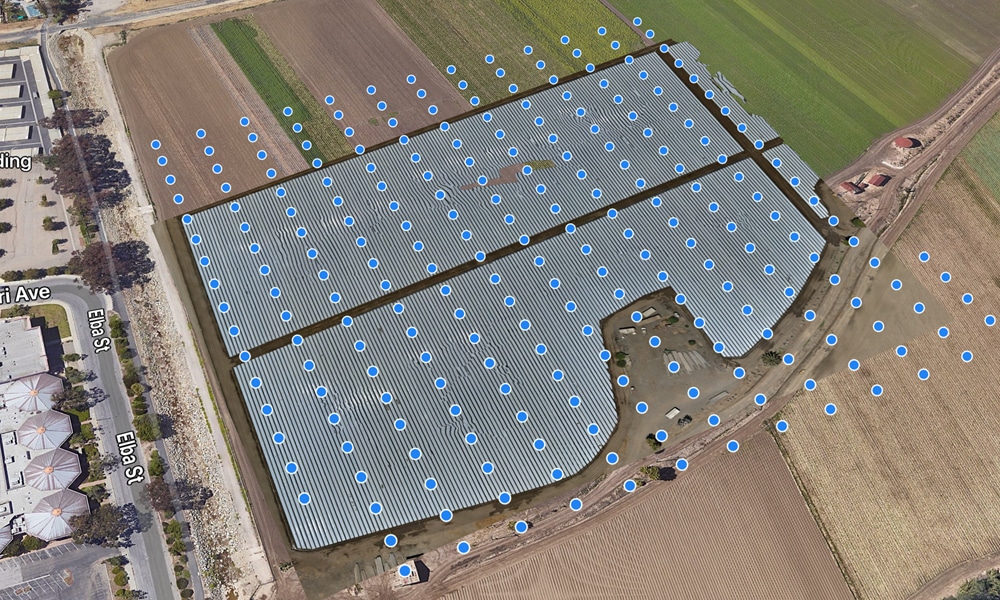

To create a 3D model with a drone, the drone is flown over the area of interest while taking a series of overlapping images. These images are then processed using specialized software to create a 3D model. The software combines the images and uses the overlapping portions to calculate the distance between the camera and the objects in the images. This allows the software to create a 3D model that accurately represents the shape and position of the objects in the real world.

The quality and accuracy of the 3D model depends on several factors, including the resolution and overlap of the images, the stability of the drone, and the presence of features such as texture and contrast in the images. The accuracy of the model can also be affected by factors such as atmospheric conditions and the presence of objects that move between images, such as people or vehicles.

Drone 3D modeling can be used for a variety of applications, such as creating 2D maps, analyzing terrain, measuring volumes, and generating virtual tours. They can also be used in combination with other data sources, such as lidar data or geospatial information, to create more detailed and accurate models.

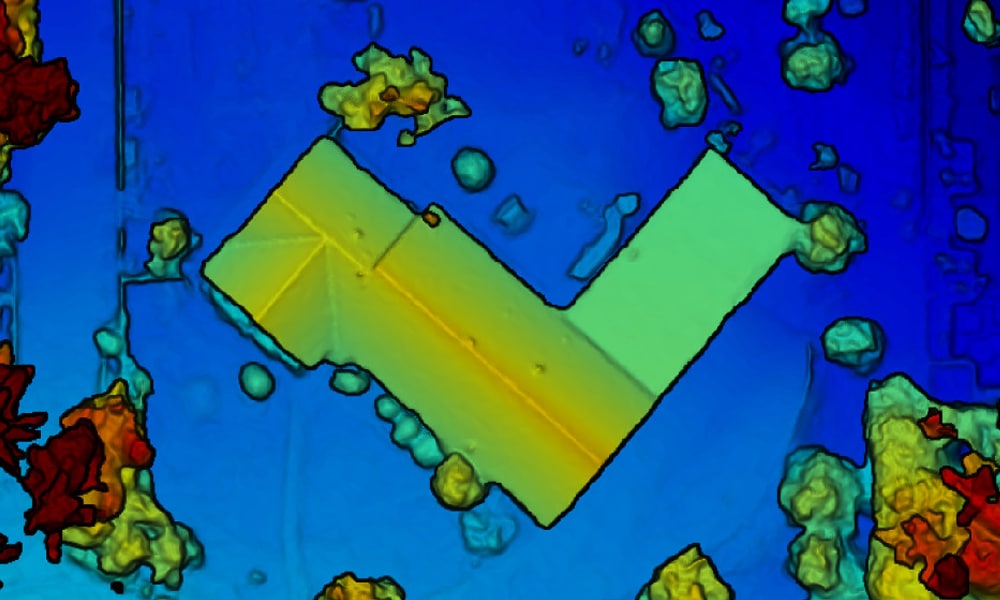

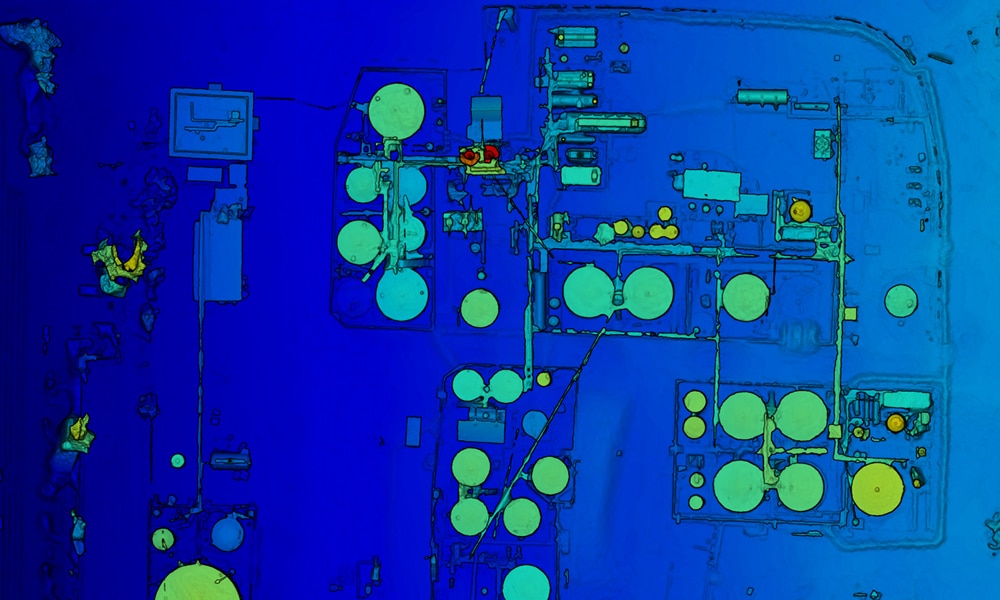

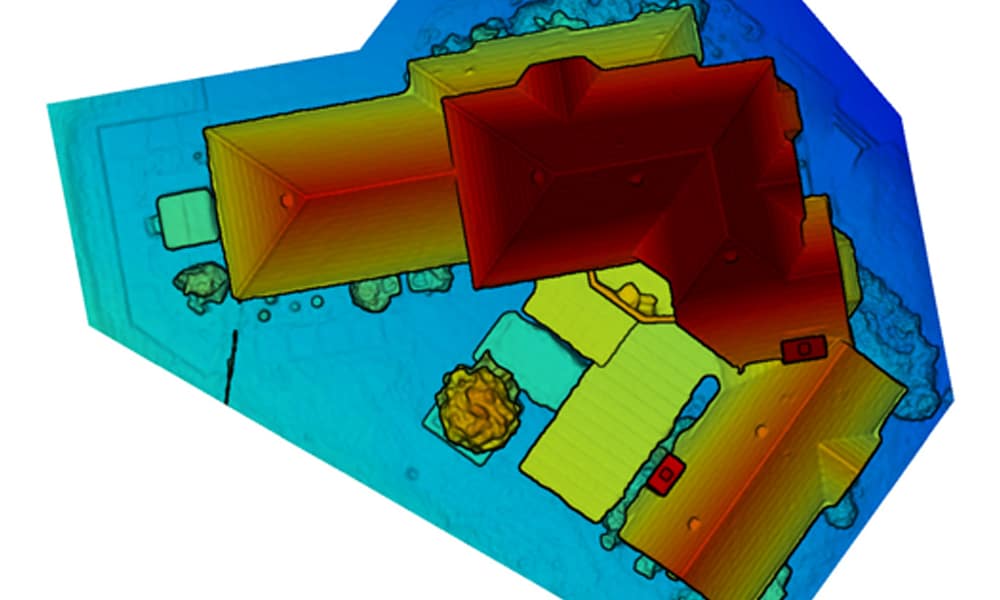

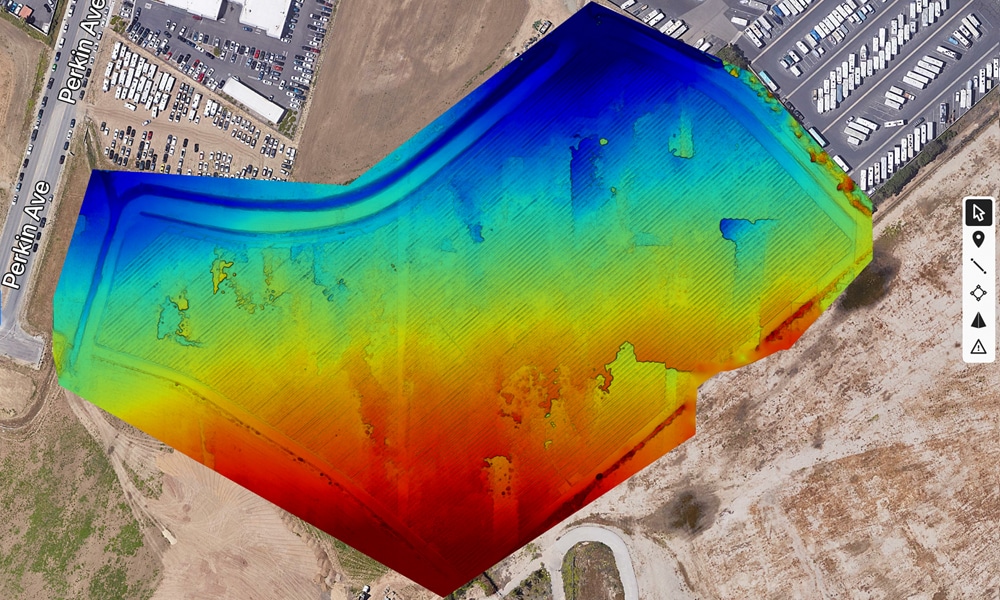

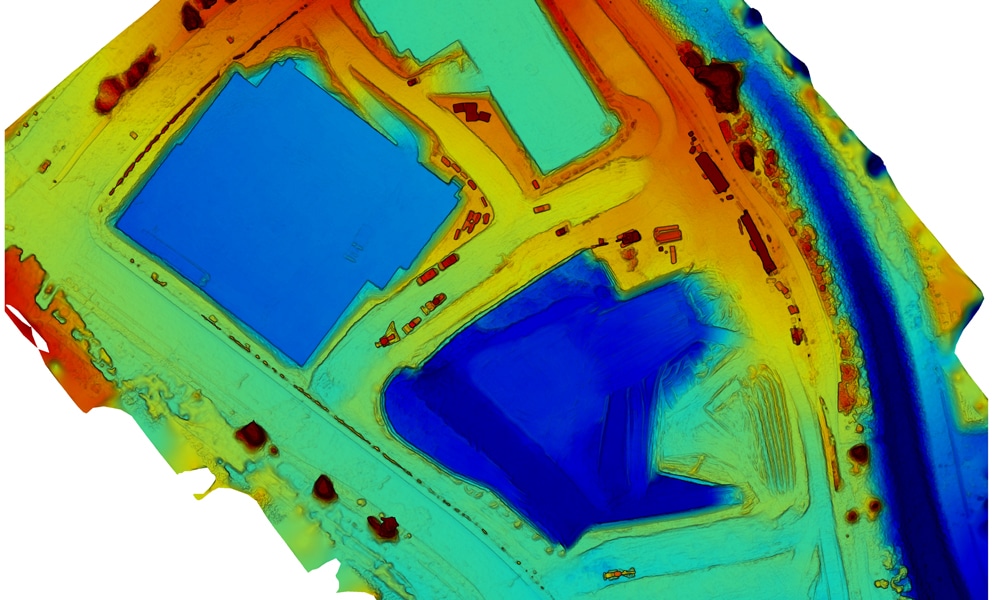

Elevation models and Digital Terrain Models

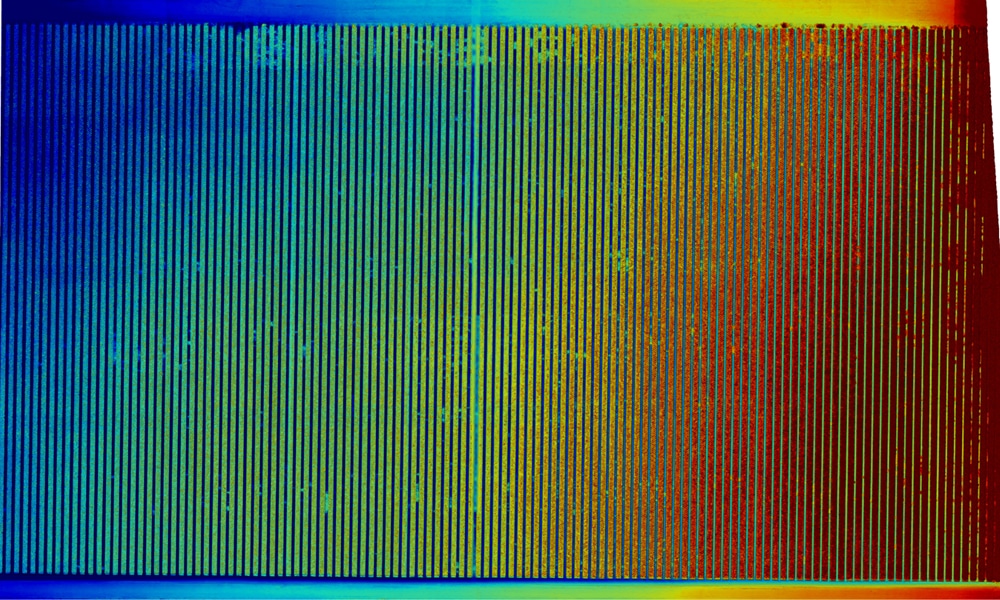

A 3D elevation model (DEM) is a digital representation of the terrain’s elevation. It shows the shape and elevation of the land surface in a three-dimensional form, with the x and y axes representing the horizontal position and the z axis representing the elevation. A digital terrain model (DTM) is similar to a DEM, but it includes only the terrain and does not include any above-ground features such as buildings or vegetation.

Drones equipped with cameras or lidar sensors can be used to create 3D elevation models and digital terrain models. To create these models with a drone, the drone is flown over the area of interest while taking a series of images or collecting lidar data. The images or lidar data are then processed using specialized software to create a 3D model.

The quality and accuracy of the 3D model depends on several factors, including the resolution and overlap of the images, the density and accuracy of the lidar data, and the stability of the drone. The accuracy of the model can also be affected by factors such as atmospheric conditions and the presence of objects that move between images, such as people or vehicles.

3D elevation models and digital terrain models can be used for a variety of applications, such as creating 2D maps, analyzing terrain, measuring volumes, and generating virtual tours. They can also be used in combination with other data sources, such as aerial imagery or geospatial information, to create more detailed and accurate models.

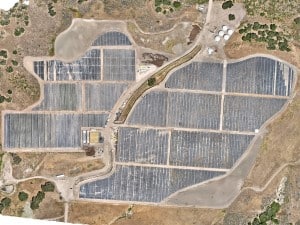

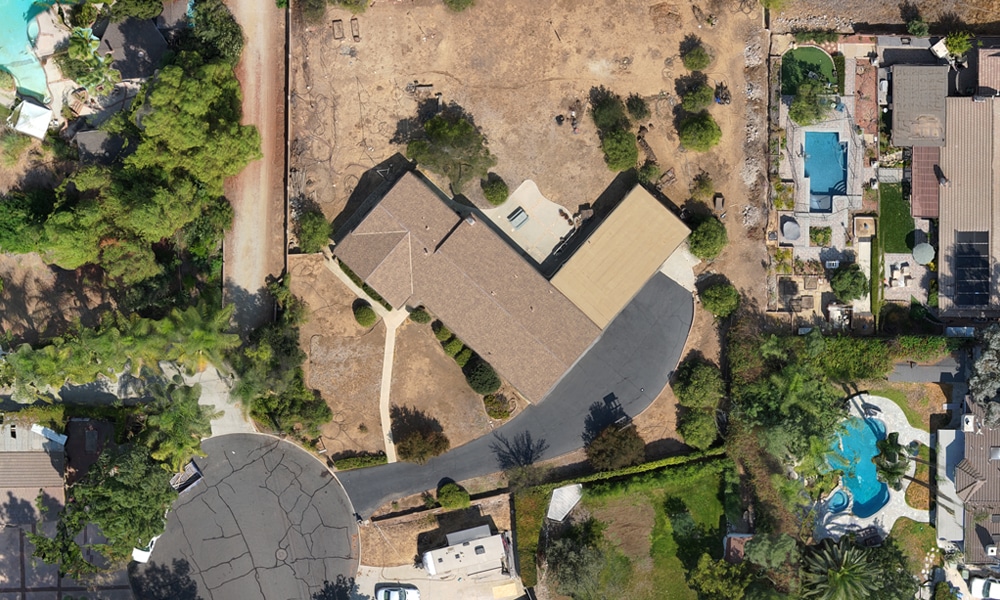

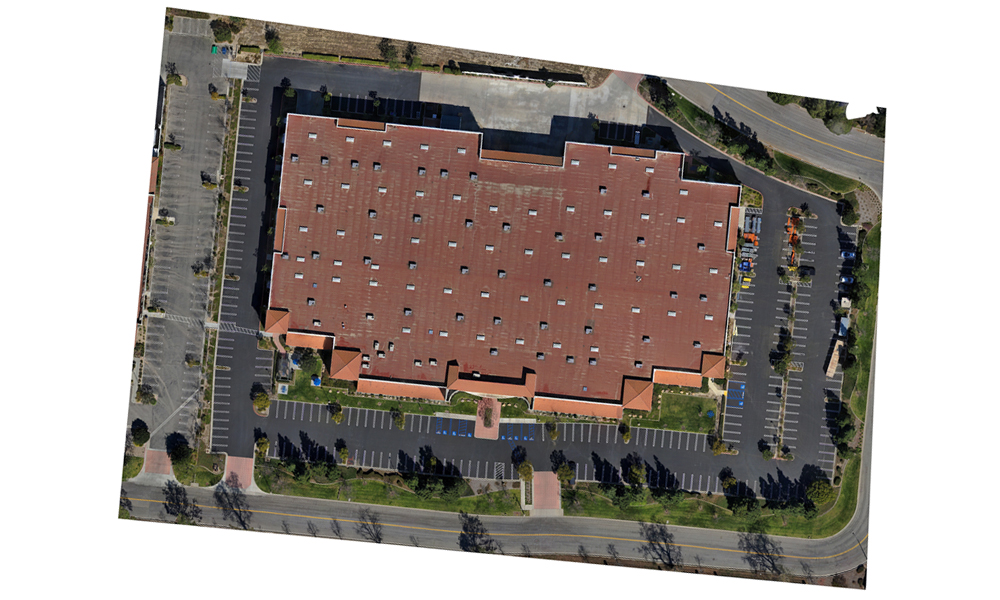

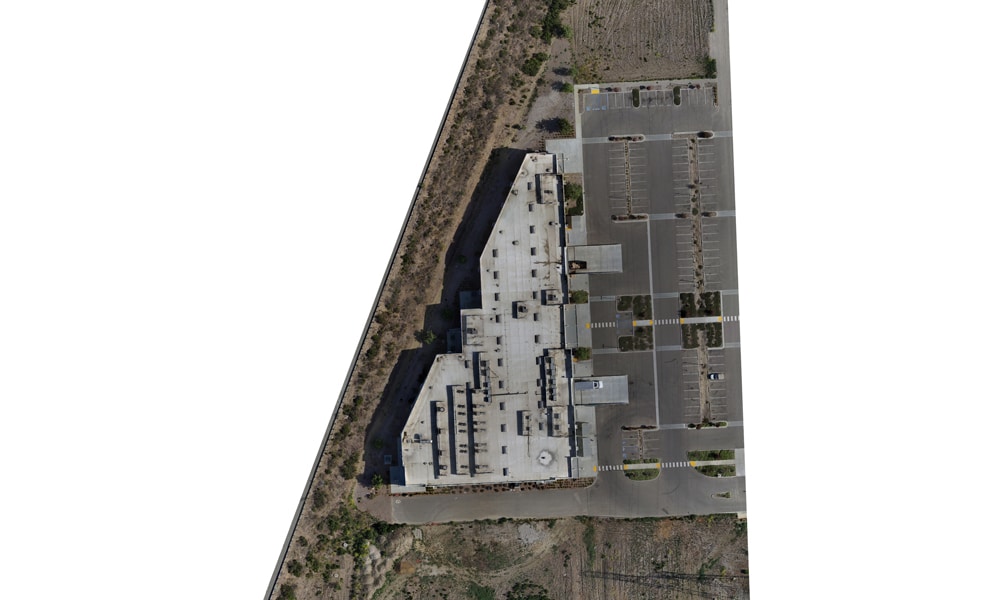

Orthomosaic Imaging

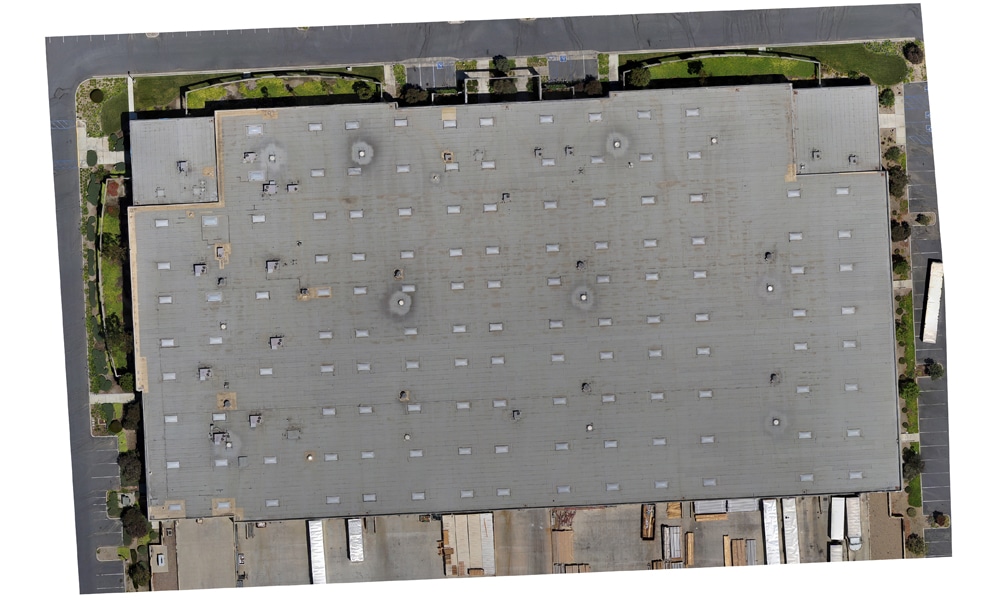

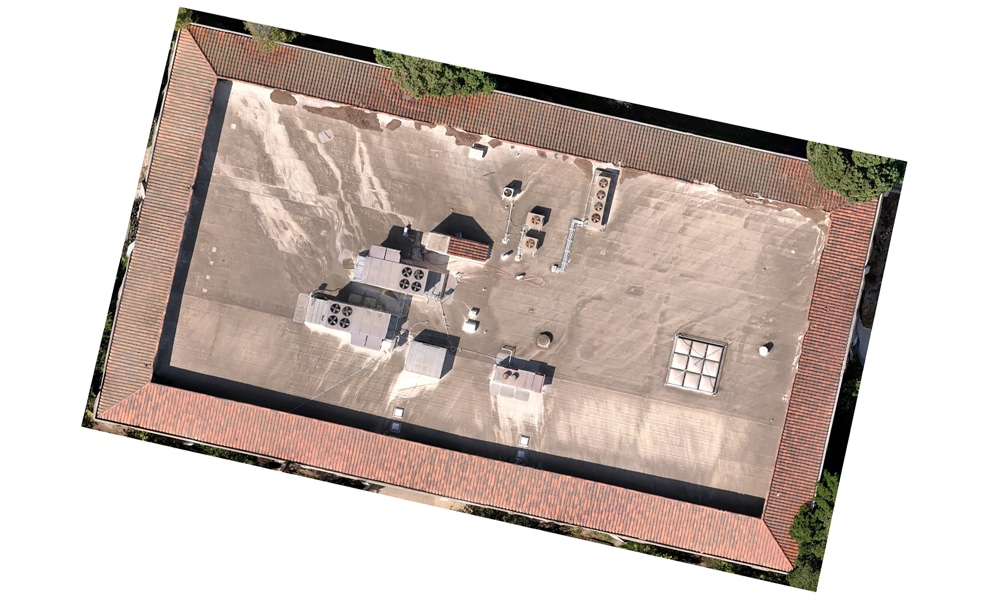

Orthomosaics are high-resolution aerial images that have been geometrically corrected (orthorectified) to remove the effects of terrain relief and camera orientation. They are created by combining and aligning a series of overlapping images captured by a drone or other aerial platform.

Orthomosaics can be useful for drone services in several ways:

  • They provide a detailed, accurate, and up-to-date view of an area, which can be useful for a variety of applications such as mapping, inspection, and monitoring.
  • They can be used to create 2D maps and 3D models of an area, which can be useful for planning, analysis, and visualization.
  • They can be used to measure distances, areas, and volumes, which can be useful for asset management, construction, and other applications.
  • They can be used to identify and analyze features such as roads, buildings, and vegetation, which can be useful for a variety of purposes, such as disaster response, environmental management, and land use planning.

Orthomosaics can be created from a variety of aerial platforms, including drones, planes, and satellites. They can be created from images captured with visible light cameras or with other types of sensors, such as multispectral cameras and lidar. The quality and accuracy of the orthomosaic depends on several factors, including the resolution and overlap of the images, the stability of the platform, and the presence of features such as texture and contrast in the Drone 3D modeling images.

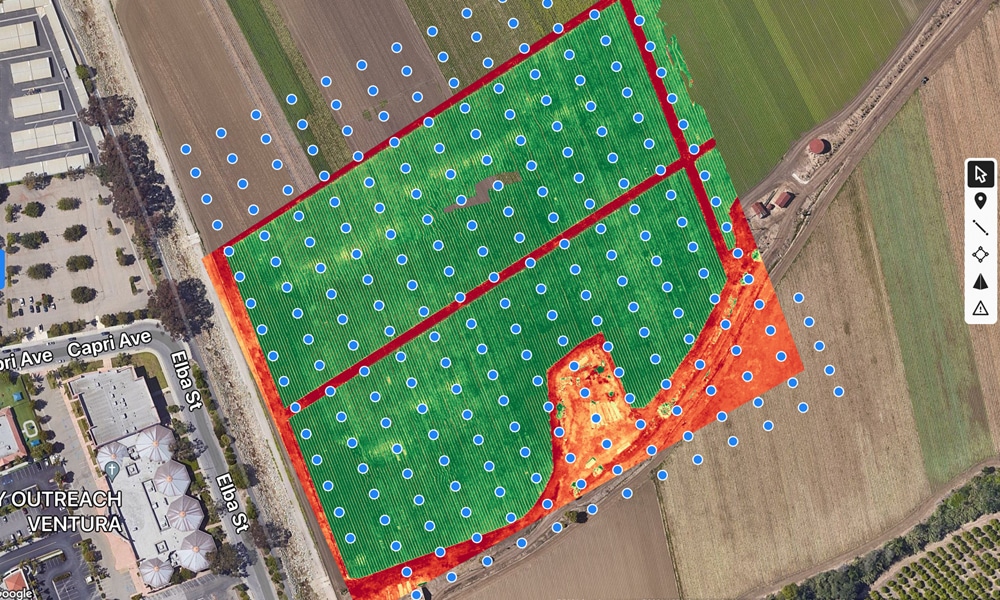

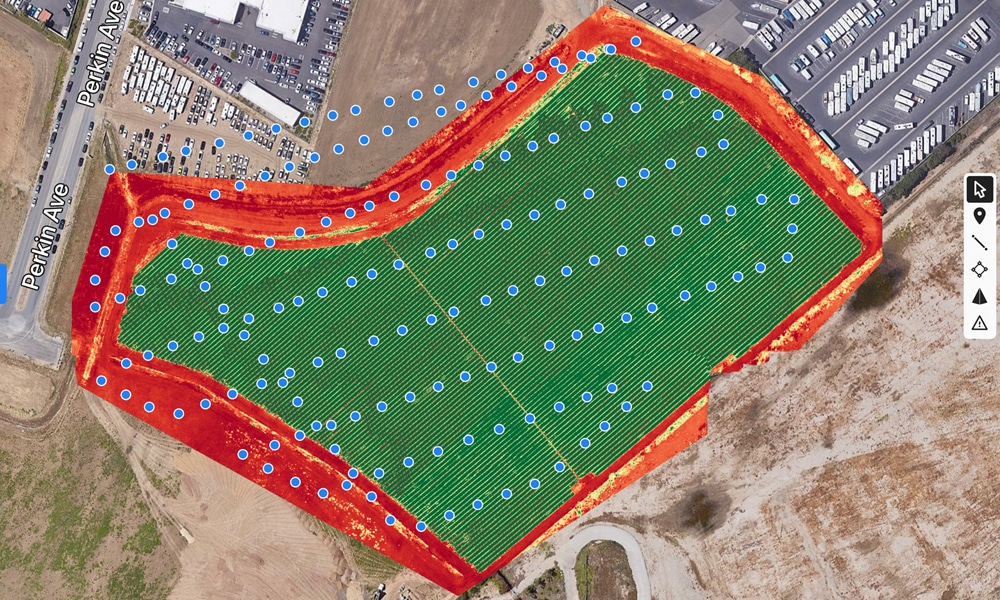

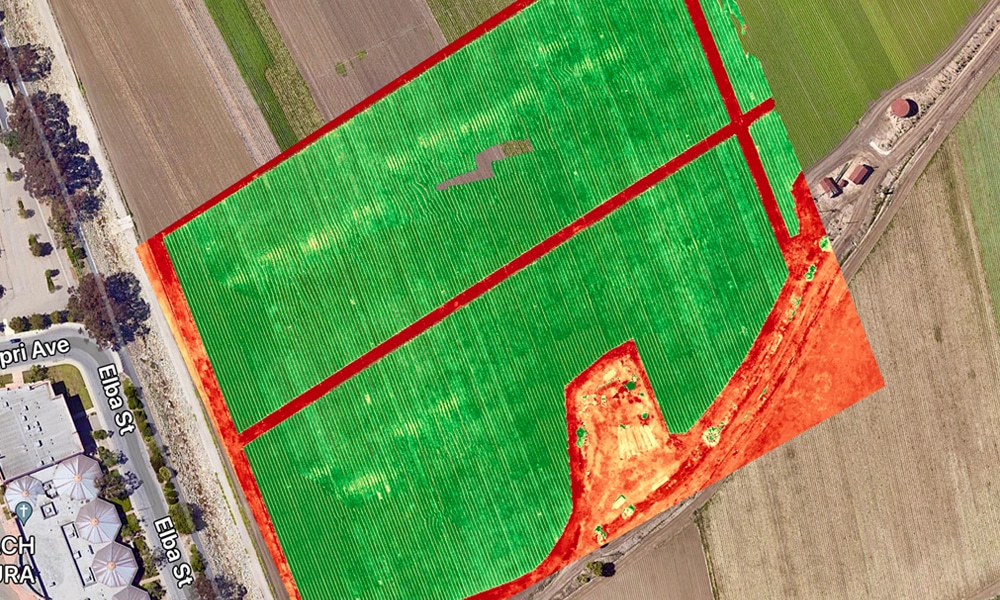

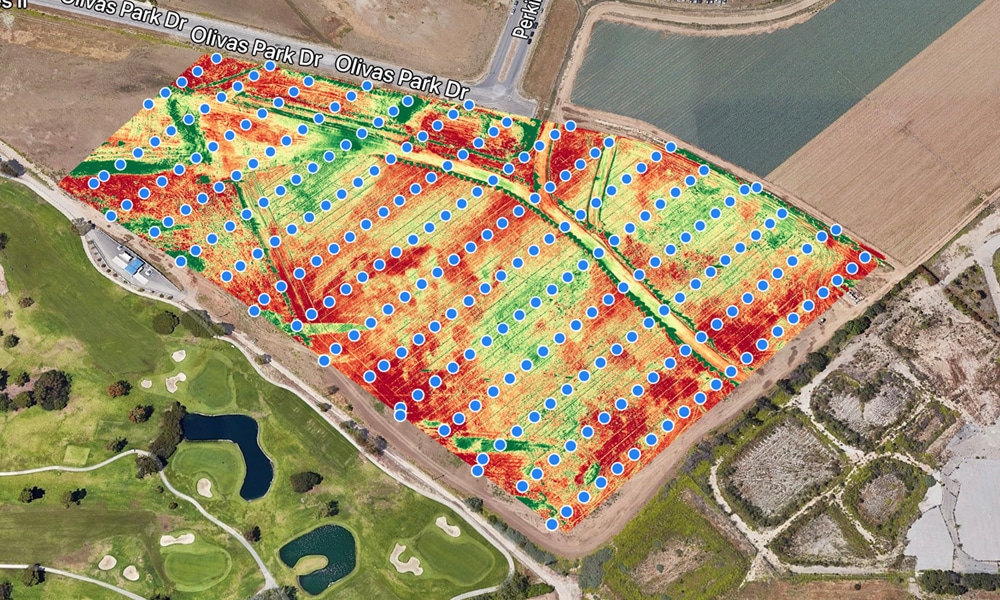

Plant Health NDVI & NIR

NDVI (Normalized Difference Vegetation Index) and NIR (near-infrared) are tools that can be used to assess the health of plants using drones.

NDVI is a measure of the amount of chlorophyll in a plant. It is calculated from the difference between the near-infrared (NIR) and red bands of the electromagnetic spectrum, and is normalized to remove the effects of atmospheric conditions. A high NDVI value indicates a healthy plant with a lot of chlorophyll, while a low NDVI value indicates a stressed or unhealthy plant.

NIR is a type of electromagnetic radiation that is not visible to the human eye. It is located just beyond the red end of the visible spectrum, and has a longer wavelength than visible light. NIR is absorbed by chlorophyll and other pigments in plants, and is reflected by the soil and other inorganic materials.

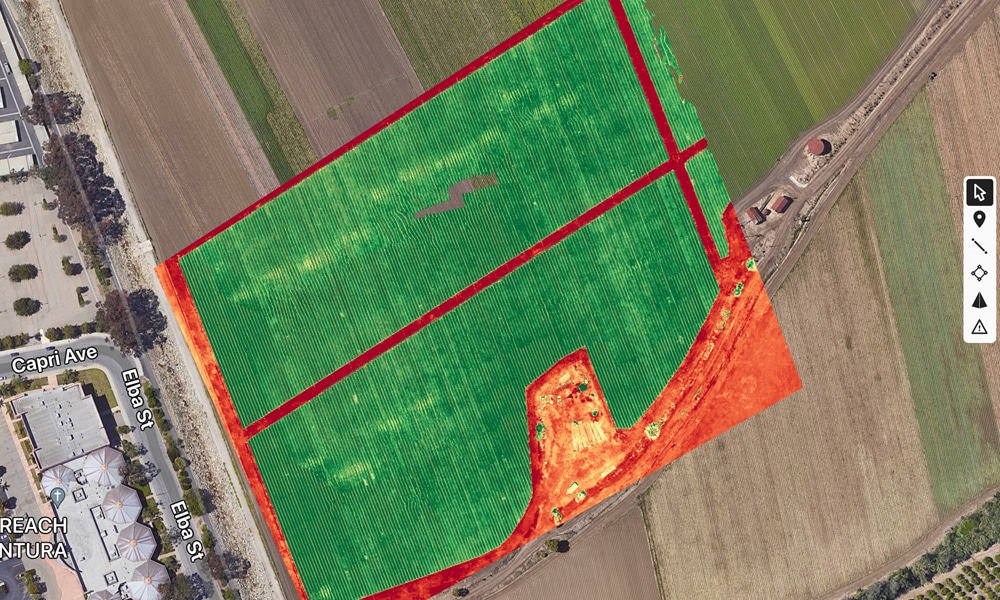

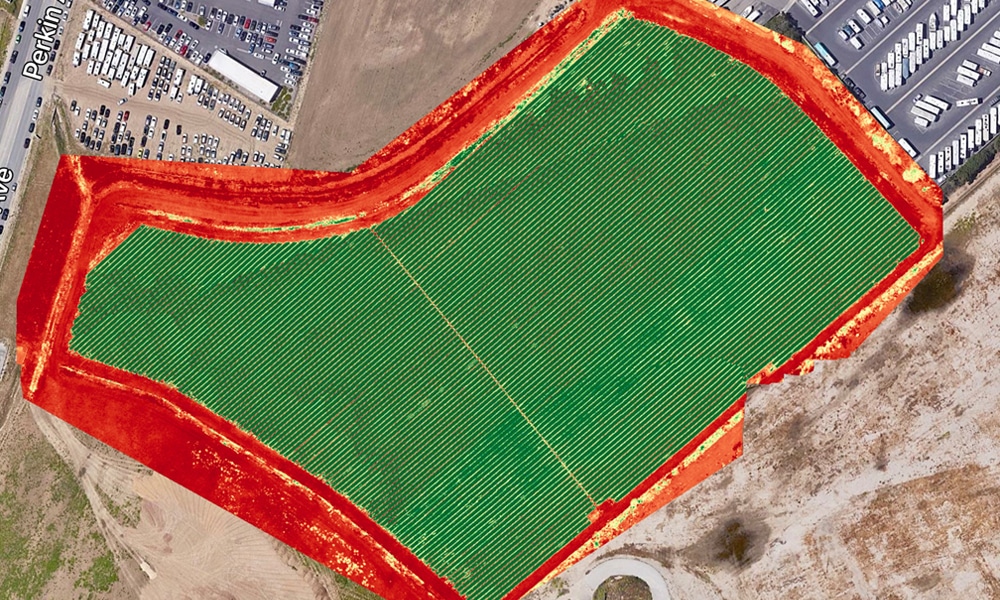

Drones equipped with cameras that can capture both NIR and visible light can be used to create NDVI maps of an area. These maps can be used to identify areas of the field that may have stressed or unhealthy plants, and can help farmers to optimize their irrigation, fertilization, and pest management practices.

Drone-based NDVI mapping can be a fast and cost-effective way to assess the health of crops, and can be used in a variety of agricultural applications, such as precision farming, field scouting, and yield prediction.
